_/_
F/1,4 F=103,400 mm (35,0°)
[ f/1,5 f=101,604 mm (35,0°) ]
_/_
F/1,4 F=103,400 mm (35,0°)
[ f/1,5 f=101,604 mm (35,0°) ]
N° |
Rayon |
Indice d |
Constringence |
Épaisseur |
0 |
air | ***** |
***** | |
1 |
83,500 | 1,61300 |
59,1 |
8,700 |
2 |
142,700 | air |
***** |
0,500 |
3 |
63,650 | 1,61300 |
59,1 |
25,700 |
4 |
-60,550 | 1,74700 |
27,4 |
2,900 |
5 |
103,900 | air |
***** |
9,500 |
6 |
-1272,000 | 1,65200 |
33,5 |
7,800 |
7 |
-47,700 | 1,61300 |
59,1 |
3,000 |
8 |
49,900 | air |
***** |
4,800 |
9 |
70,000 | 1,64400 |
48,3 |
5,700 |
10 |
-238,500 | air |
***** |
0,500 |
11 |
170,600 | 1,61300 |
59,1 |
6,700 |
12 |
-187,800 | air |
***** |
o3o-3k4f |

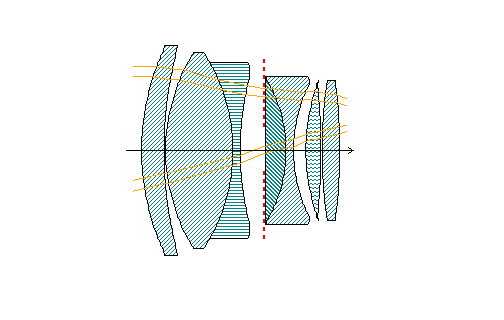

no dioptre diaphragme : 5 | Calcul n° 582
| |||
| Commentaire : US 1 955 61 III | ||||
| Inventeur : A. Warmisham | Maison : Kapella | Date : 1934 | 12/211 | |
