_/_
F/1,0 F=106,626 mm (28,0°)
[ f/1,2 f=106,626 mm (28,0°) ]
_/_
F/1,0 F=106,626 mm (28,0°)
[ f/1,2 f=106,626 mm (28,0°) ]
N° |
Rayon |
Indice d |
Constringence |
Épaisseur |
0 |
air | ***** |
***** | |
1 |
84,300 | 1,62340 |
56,3 |
30,500 |
2 |
-111,100 | 1,52900 |
51,6 |
3,000 |
3 |
-666,600 | air |
***** |
15,000 |
4 |
-95,240 | 1,69400 |
30,7 |
3,000 |
5 |
666,600 | air |
***** |
7,500 |
6 |
-175,500 | 1,69400 |
30,7 |
3,000 |
7 |
71,430 | air |
***** |
15,000 |
8 |
Dpt. plan | 1,62340 |
56,3 |
22,000 |
9 |
-70,000 | 1,52900 |
51,6 |
4,900 |
10 |
-120,000 | air |
***** |
0,200 |
11 |
100,000 | 1,64370 |
48,3 |
38,000 |
12 |
-100,000 | air |
***** |
o3o-4k4j |

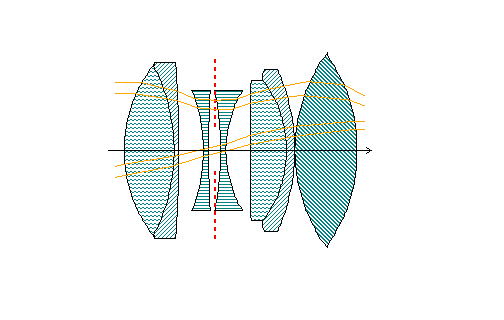

no dioptre diaphragme : 5 | Calcul n° 911
| |||
| Commentaire : GB 0 346 171 II | ||||
| Inventeur : A. WArmisham | Maison : Kapella | Date : 1930 | 21/121 | |
