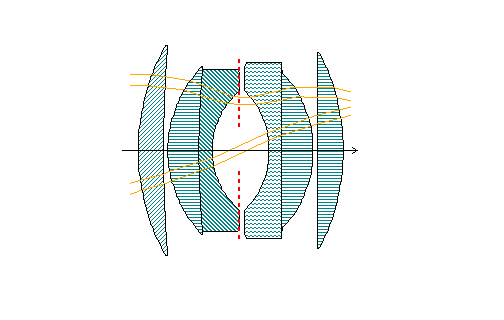

_/_
F/2,0 F=100,000 mm (45,0°)
[ f/2,0 f=100,017 mm (45,0°) ]
_/_
F/2,0 F=100,000 mm (45,0°)
[ f/2,0 f=100,017 mm (45,0°) ]
N° |
Rayon |
Indice d |
Constringence |
Épaisseur |
0 |
air | ***** |
***** | |
1 |
64,470 | 1,57310 |
57,3 |
7,532 |
2 |
400,530 | air |
***** |
1,245 |
3 |
35,750 | 1,61350 |
59,4 |
9,255 |
4 |
252,130 | 1,61340 |
37 |
3,862 |
5 |
23,080 | air |
***** |
16,947 |
6 |
-25,210 | 1,57950 |
40,4 |
3,798 |
7 |
Dpt. plan | 1,61350 |
59,4 |
9,255 |
8 |
-33,930 | air |
***** |
1,245 |
9 |
1643,630 | 1,61350 |
59,4 |
7,723 |
10 |
-62,870 | air |
***** |
o3o-4k4j |
no dioptre diaphragme : 5 | Calcul n° 922
| |||
| Commentaire : GB 0 397 261 I | ||||
| Inventeur : A. Warmisham | Maison : Kapella | Date : 1933 | 12/21 | |
