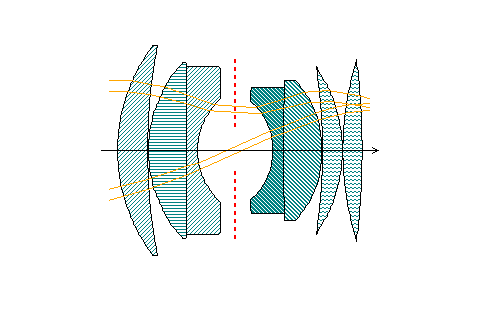

_/_
F/1,4 F=100,000 mm (40,0°)
[ f/1,4 f=100,839 mm (40,0°) ]
_/_
F/1,4 F=100,000 mm (40,0°)
[ f/1,4 f=100,839 mm (40,0°) ]
N° |
Rayon |
Indice d |
Constringence |
Épaisseur |
0 |
air | ***** |
***** | |
1 |
81,670 | 1,64790 |
33,8 |
14,000 |
2 |
271,740 | air |
***** |
0,300 |
3 |
60,480 | 1,69680 |
55,6 |
18,000 |
4 |
Dpt. plan | 1,64790 |
33,8 |
5,000 |
5 |
33,380 | air |
***** |
35,000 |
6 |
-30,480 | 1,70030 |
30,3 |
5,000 |
7 |
833,330 | 1,69000 |
55,6 |
18,000 |
8 |
-48,950 | air |
***** |
0,300 |
9 |
-248,760 | 1,65100 |
58,6 |
9,000 |
10 |
-68,120 | air |
***** |
0,300 |
11 |
140,850 | 1,65100 |
58,6 |
9,000 |
12 |
-335,570 | air |
***** |
o3o-4k4j |
no dioptre diaphragme : 5 | Calcul n° 966
| |||
| Commentaire : US 2 959 103 | ||||
| Inventeur : G. Cook | Maison : Taylor | Date : 1960 | 12/211 | |
